Replaces: 6382093, 6374772, 5452695, 4034188, 4034429

Suitable for: Many applications including EPA 17 CUMMINS X 15 Industrial / Tuck 15.0D

Notes: Internally cooled. Includes installation kit.

Replaces: 6382096, 5579127, 4034315

Notes: Internally cooled. Includes installation kit.

Please ensure part number cross-reference is checked before installation and calibration, as this actuator must only be used on OE part numbers listed in our catalogue or the calibration instructions document. Warranty may be void if used on incorrect or modified applications.
Melett Holset VGT actuators have been confirmed to be compatible with the following calibration tools:

• Holset eTool
• ATS Tester
• CIMAT Turbotest
• Turboclinic – Turboscope.

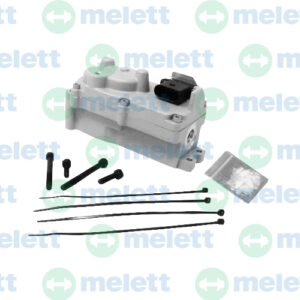

Typically used on externally cooled actuator models.

Wire Ties x 6
Locating pin x1
Grease Packet x1
Mounting Bolt x4
Actuator Mounting Gasket/Seal x1

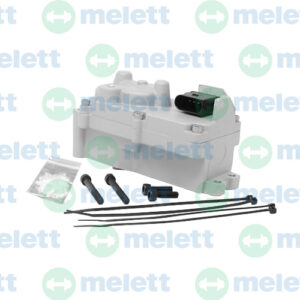

Typically used on internally cooled actuator models. OE Part reference 4032075H.

Wire Ties x 4
Mounting Bolt x 4
Actuator MountingGasket/Seal x 2
Grease Packet x 1

OE part number = 5347703

Part of OE Actuator kit 4034315 and typically used on EPA07 to EPA13 HE300VG application.

4 pin actuator connector

Connector is not supplied with screws.  These can be purchased individually – Part number 1100-025-620.
